1.51inch Transparent OLED Compatible with Raspberry Pi 5/4B/3B+/3B/A+/Pi Zero W/Pi Zero 2W, 128 x 64 Resolution, SPI/I2C Interfaces, Embedded Independent Driver Chip, Light Blue Color Display
$27.83
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bergen-aesthetics.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$27.83
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bergen-aesthetics.com
Free 30-day returns Details
Product details
| Management number | 216993545 | Release Date | 2026/04/19 | List Price | $11.13 | Model Number | 216993545 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

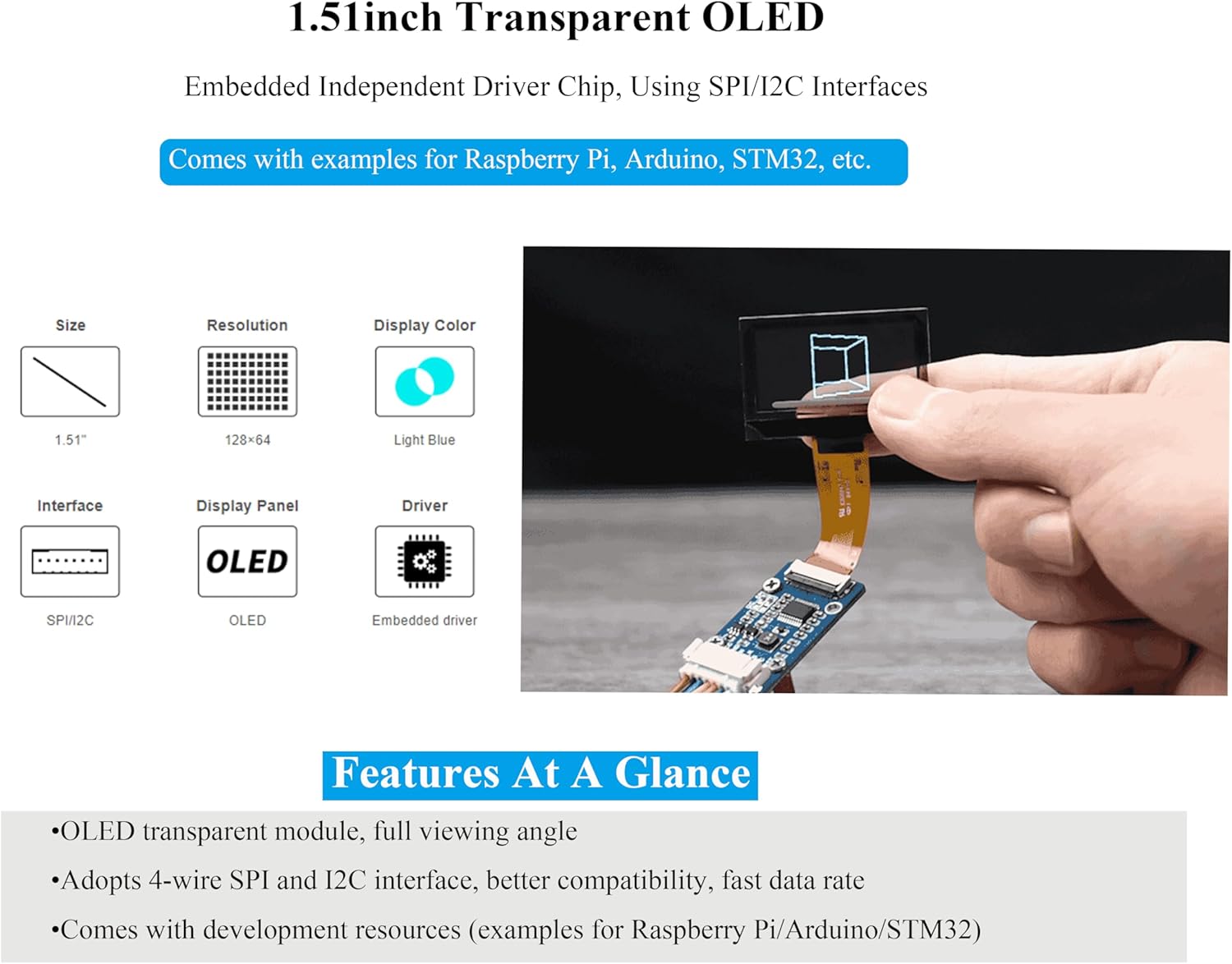

- 1.51inch Transparent OLED, full viewing angle, 128 x 64 Resolution, embedded independent driver chip, using SPI/I2C Interfaces. Operating voltage is 3.3V / 5V.

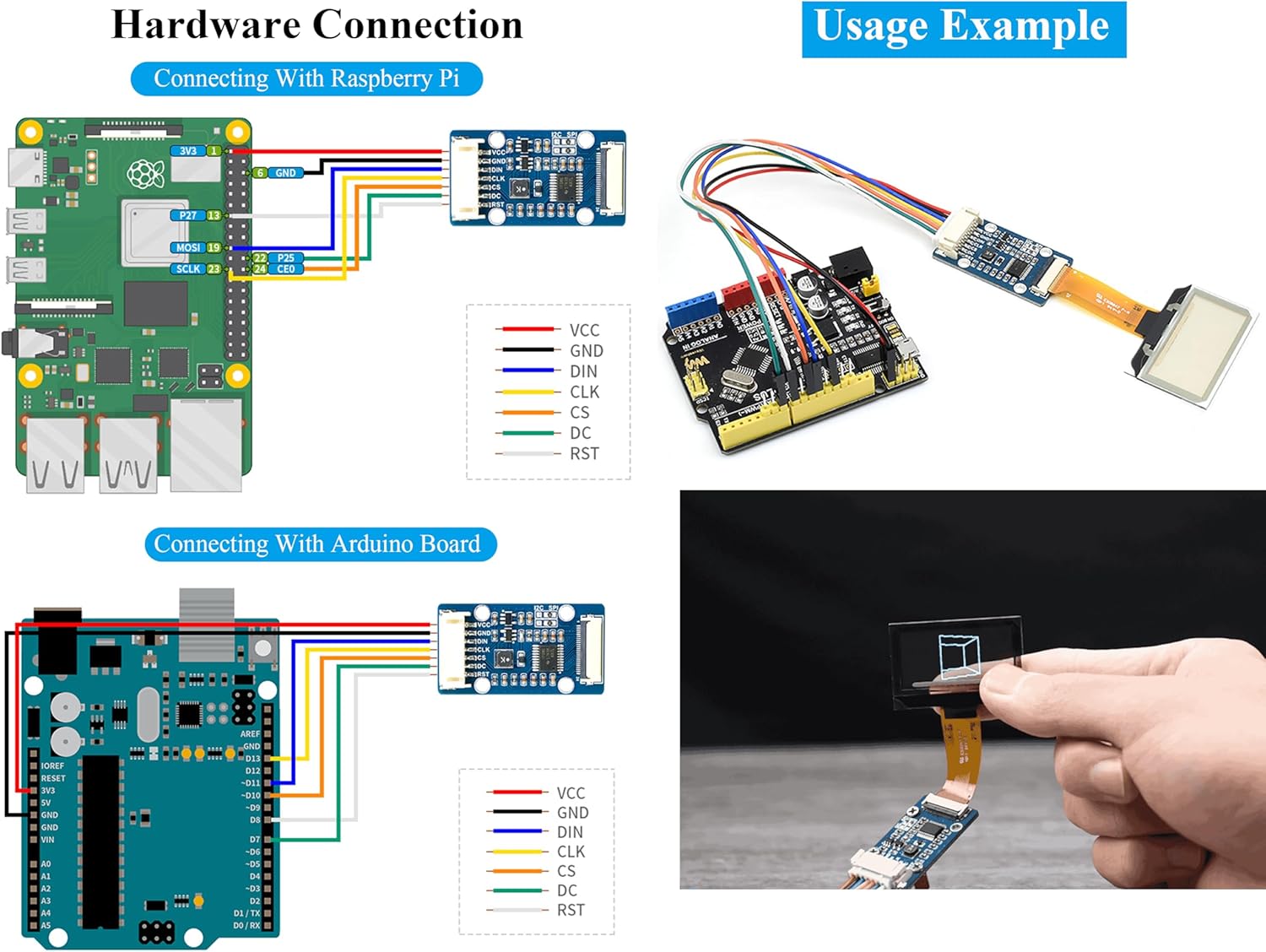

- Adopts 4-wire SPI and I2C interface, better compatibility, fast data rate. Compatible with Raspberry Pi (Pi 5/4B/3B+/3B/A+/Pi Zero W/Pi Zero 2W,etc.)/Ardui-no/STM32.
- Note: The program defaults to SPI mode. If you need to switch the mode, please modify DEV_Config.h. For details, please refer to the program description - bottom hardware interface - interface selection.
- Using Attention: 1. Be careful not to connect the power supply in reverse. 2. The same picture cannot be displayed for a long time, or there will be afterimages and cause damage to the OLED.
- Comes with relevant resources and tutorials to help you get started quickly: bit.ly/4keLnGx
| Brand | UeeKKoo |
|---|---|
| Resolution | 128 x 64 |
| Item Weight | 0.02 Pounds |
| Screen Size | 1.51 Inches |
| Aspect Ratio | 2:1 |
| Display Type | OLED |
| Manufacturer | UeeKKoo |
| Model Number | 1.51inch Transparent OLED |
| BuiltIn Media | 1.51inch Transparent OLED x1, PH2.0 7PIN cable x1, Screws pack |
| Response Time | 5 Milliseconds |
| Viewing Angle | 180 Degrees |
| Contrast Ratio | 2000:1 |
| Has Color Screen | Yes |
| Native Resolution | 128 x 64 |
| Display Technology | OLED |
| Warranty Description | Technical Support is provided |
| Connectivity Technology | SPI, I2C |
| Display Resolution Maximum | 128 x 64 |
