Cuifati A200WL 19V 200W DC ATX Power Adapter Board with High Heat Resistance, Over Current and Short Circuit for Small ATX Boards,Mini Computers,HTPC Computers,POS Machines

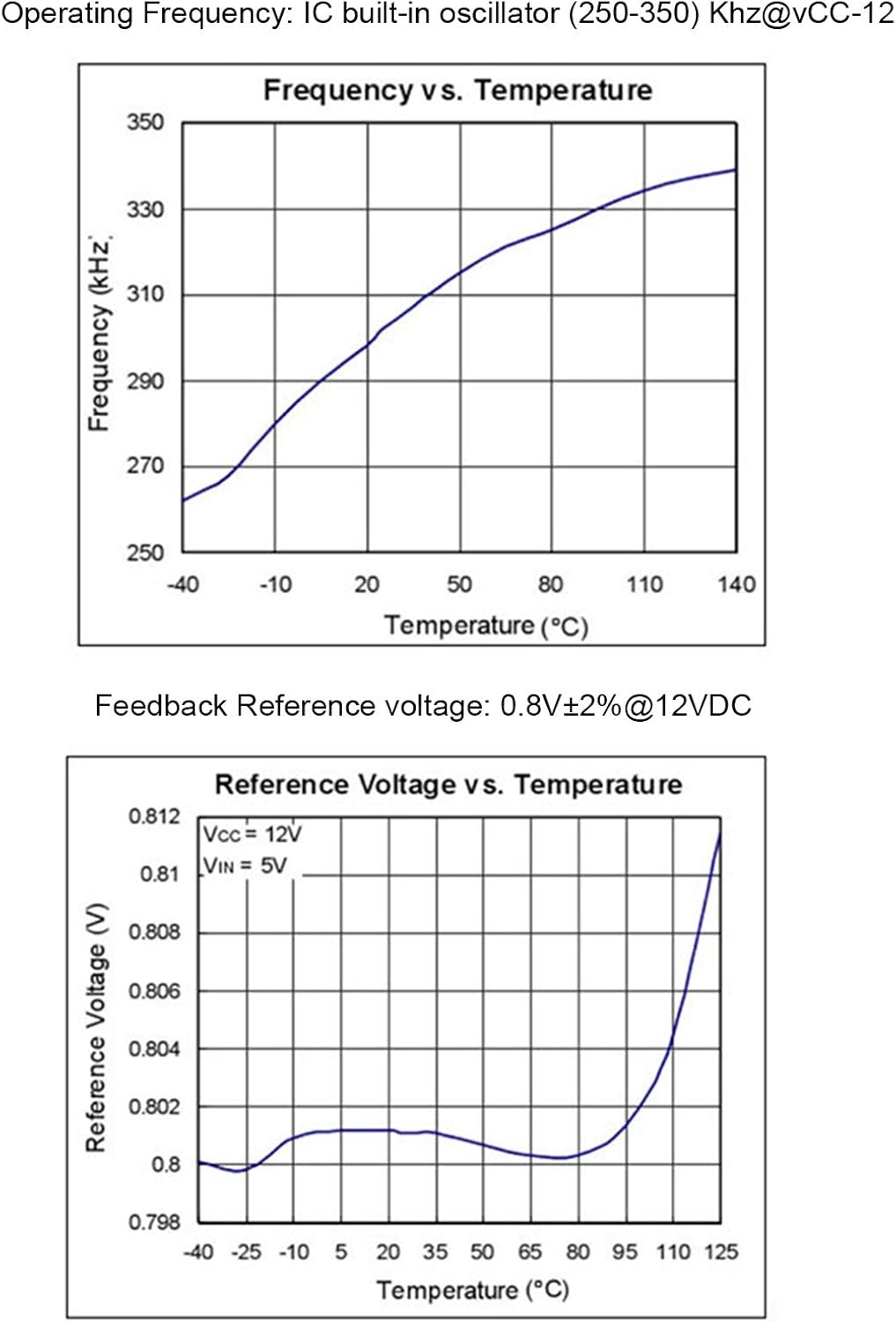

Spec:Item Type: Desktop Computer Power ModuleMaterial: PCBModel: LD-A200WLPower: 200WInput Voltage: 17-24VOutput Voltage/Maximum Load: +5VSB/2A, +5VDC/8A, +3.3VDC/8A, +12VDC/12A, -12VDC/0.15AOperating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12VFeedback Reference Voltage: 0.8V±2% at 12VDCInterface: 1 x ATX24Pin, 1 x CPU4+4Pin,1 x IDE, 1 x DC5525Cable Length: DC Cable: Approx. 320mm/12.6inCPU Cable: Approx. 210mm/8.3inIDE Cable: Approx. 200mm/7.9in Function (for +3.3V, +12V, +5.00V and +5.00VSB power output)Overcurrent : When the output current reaches the peak current, the output is turned offShort Circuit : When the output is short circuited, the output is closedWorking Temperature/Humidity: -5 - 55℃/45% - 75%Storage Temperature/Humidity: -40℃ - 70℃/10% - 90%Applications: for MINI computers, for HTPC computers, for POS machines, for ITX cases, for web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.PackageList:1 x Power Adapter Board

• 200W power adapter board using high‑quality PCB material, high performance, high heat resistance, more to use
• Eliminate 24 unnecessary wires by plugging directly into the motherboard ATX connector
• Suitable for small ATX boards to save space in the case without affecting power requirements
• With over‑current and short‑circuit
• Suitable for MINI computers, HTPC computers, POS machines, ITX cases, network servers, industrial control systems
