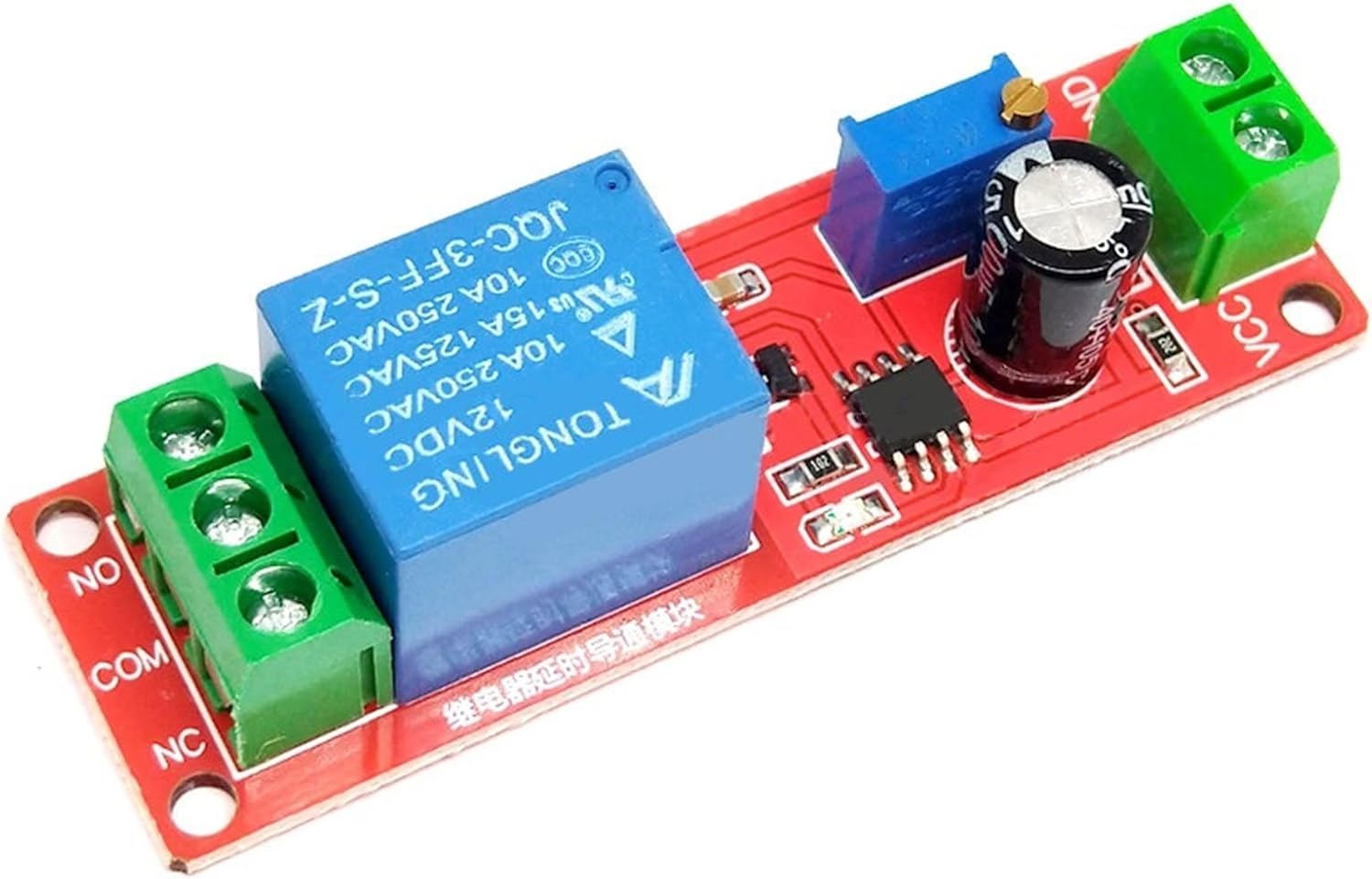

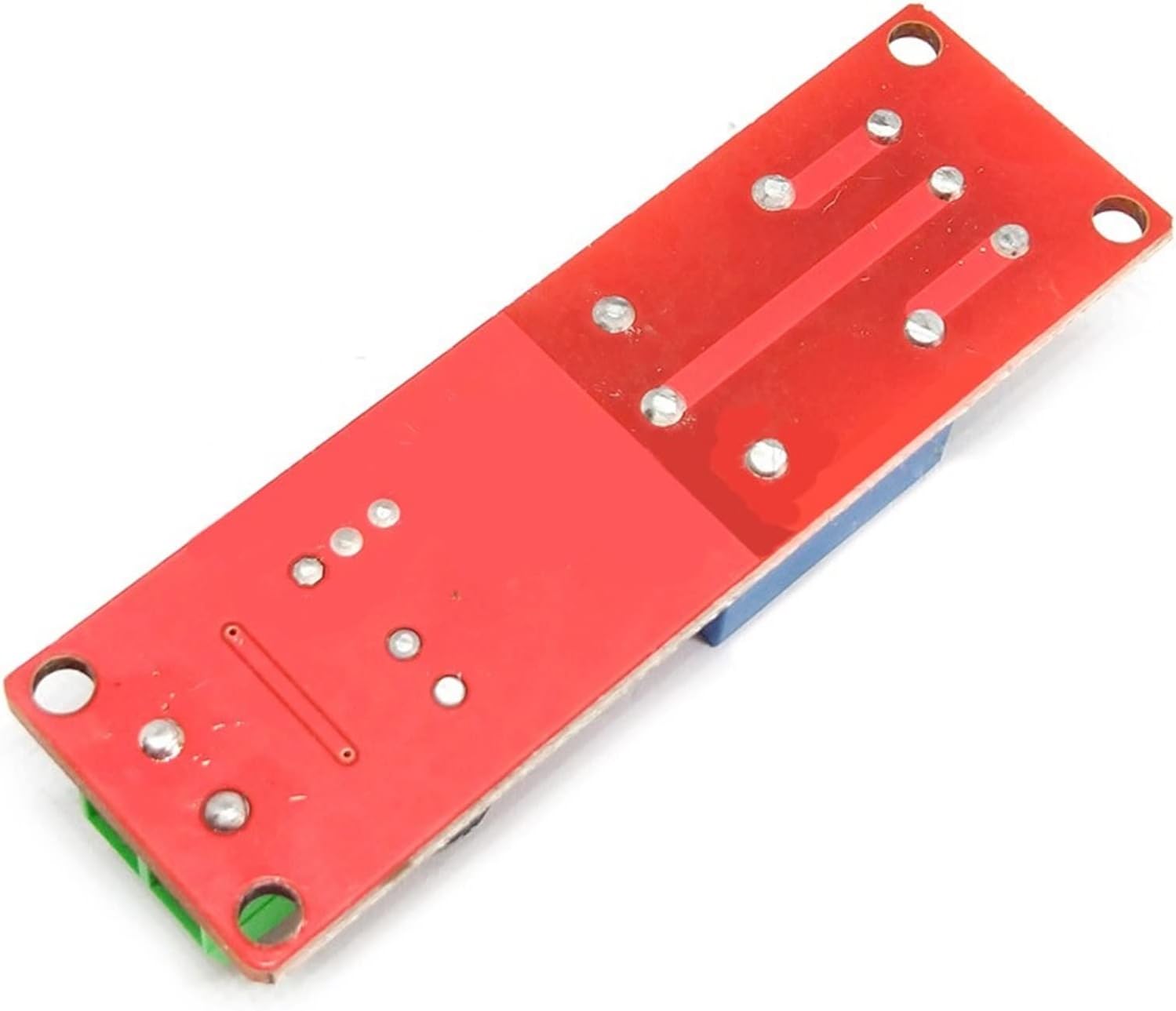

DC 5V 12V Time Delay Relay NE555 Shield Timing Timer Control Switch Car Relays Pulse Generation Duty Cycle(12v)

relayApplication:Vehicle equipment-delay to prevent car ignition, prevention ofhigh sudden current to burn components and devices.This is a 5V / 12V Conduction delay relay moduleThis is a brand new and high quality delay turn-on module.the use of high-performance timing CPU design.the power indicator LED and switch trigger timing indicationLEDs;The output can be connected to AC 250V 10A DC 30V 10Aload;There is the chronopotentiometry regulation time, adjustablefrom 0 to 10 seconds by default, or by changing thecapacitance adjustment time longerSpecification:1.Module based on: NE555 chip.2.Delay modue:delay connect module3.Input voltage: DC 5V / 12V4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional)5.Max. load: 2200WMain Chip (NE555) Characteristics:1.Timing from microseconds to long hours2.Simple circuit design3.Precision Pulse Generation / Timing,4.Adjustable Duty Cycle
