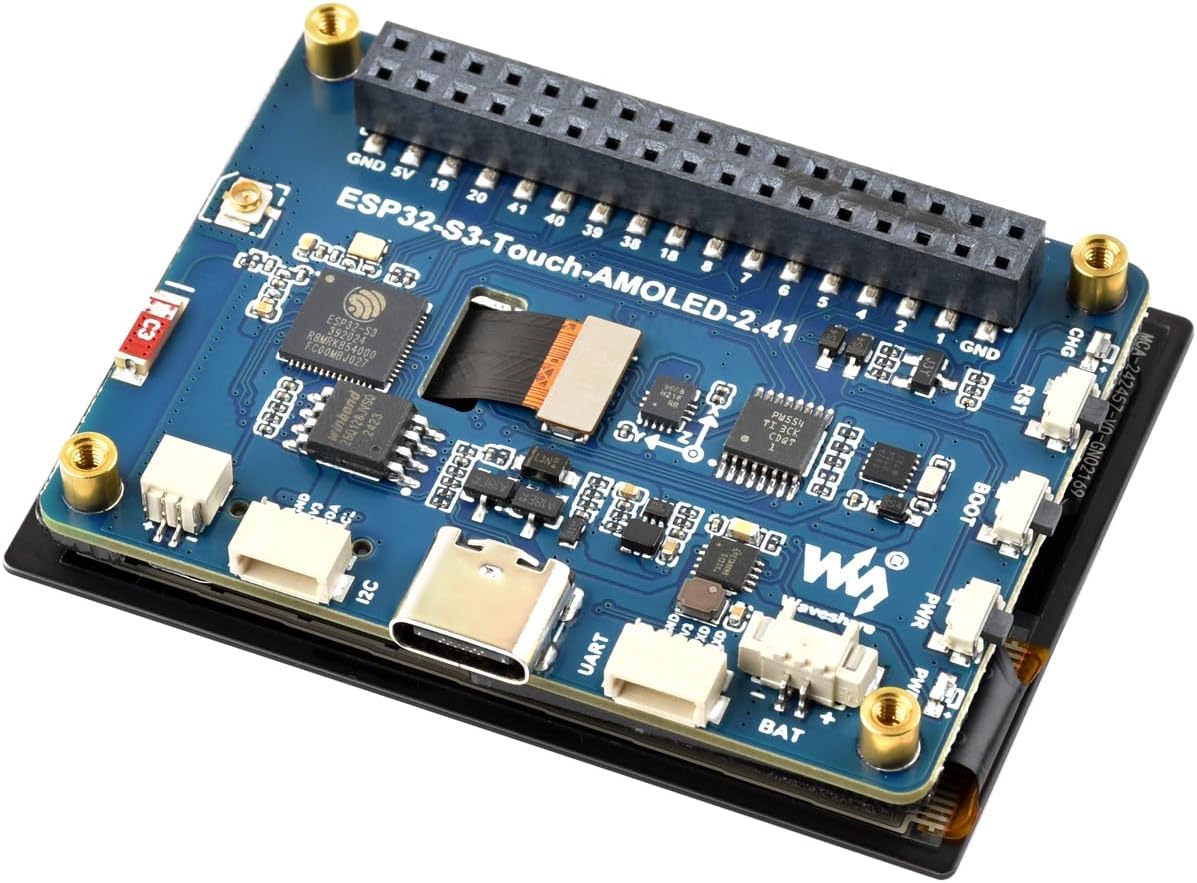

ESP32-S3 2.41inch AMOLED Capacitive Touch Display Development Board, 600x450 Resolution 16.7M Display Colors, 32-bit LX7 Dual-Core Processor, Support Wi-Fi and Bluetooth 5, Rich Interfaces (No Case)
$61.43
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bergen-aesthetics.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$61.43
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by bergen-aesthetics.com
Free 30-day returns Details
Product details
| Management number | 216115497 | Release Date | 2026/04/19 | List Price | $24.57 | Model Number | 216115497 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ESP32-S3 2.41inch AMOLED Touch Display Development Board (This is without Case version). Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to an external antenna by resoldering an onboard resistor.
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 2.41inch AMOLED display, QSPI interface, 600 x 450 resolution, 16.7M color. 178° wide viewing angle Supports capacitive touch function, controlled via I2C interface, with interrupt support.
- Adopts AMOLED screen. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images.
- 3.Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard PCF85063 R T C chip with a reserved SH1.0 R T C ba -tte-ry header (supports charging) for R T C functionality.
- Onboard RST button, along with programmable BOOT and PWR buttons for customizable functionality and flexible development. Onboard 3.7V MX1.25 ba-tte-ry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files.
- Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Onboard UART and I2C SH1.0 4PIN connectors, with a reserved 34PIN 2.54mm pitch GPIO header for expandability.
- Comes with relevant resources and tutorials to help you get started quickly: bit.ly/4h2vUX3
| Brand | UeeKKoo |
|---|---|
| Manufacturer | UeeKKoo |
| Model Number | ESP32-S3-Touch-AMOLED-2.41 |
| BuiltIn Media | ESP32-S3-Touch-AMOLED-2.41 x1, SH1.0 4PIN cable ~100mm x2 |
| Processor Count | 2 |
| Total Usb Ports | 1 |
| Warranty Description | Technical Support is provided |
| Memory Storage Capacity | 16 MB |
