High Performance High Current Scr Controller 180v 220v Motor Speed Control 20A

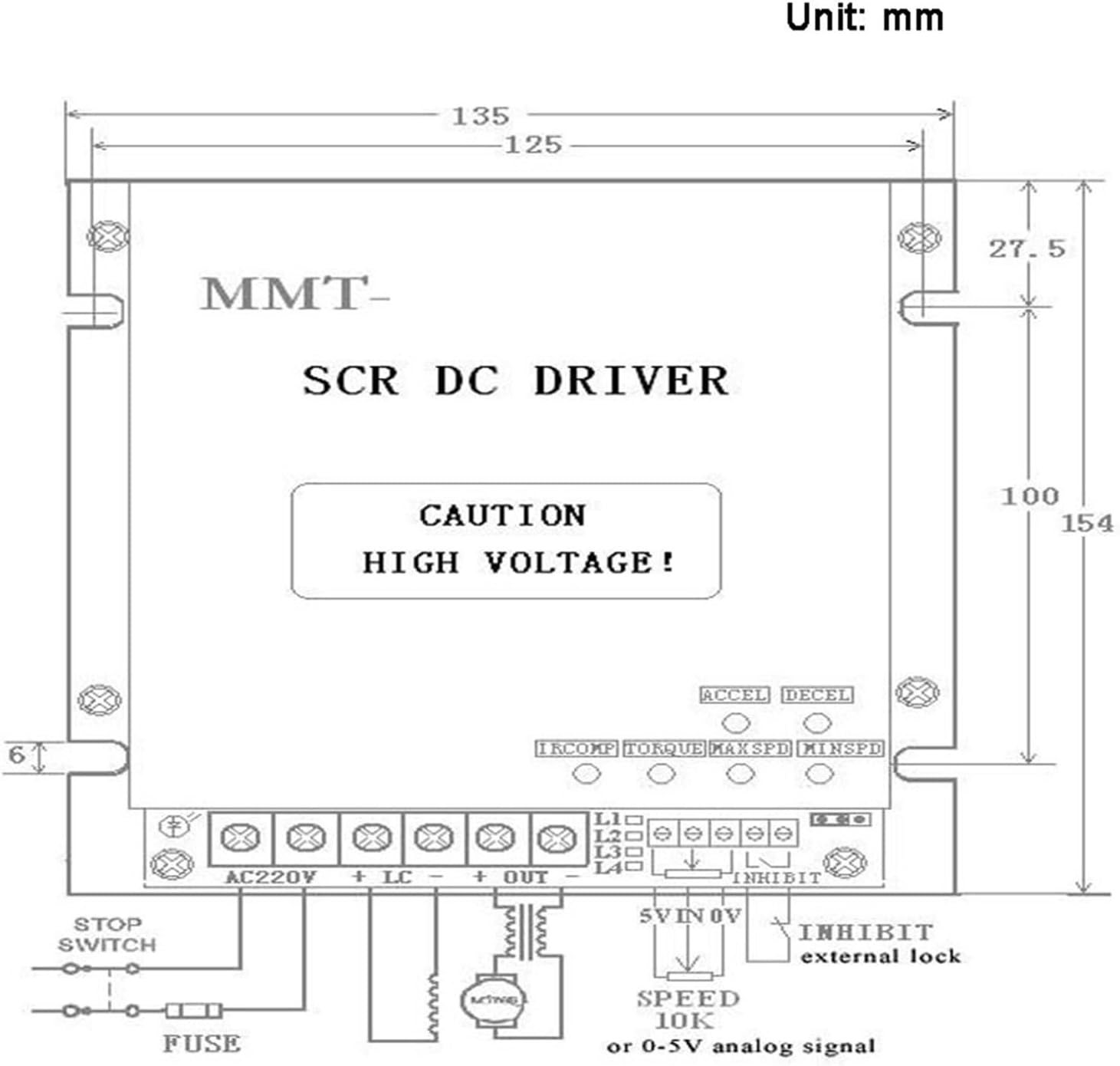

Speed ControlHigh performance high current scr controller 180v 220v motor speed control 20AModel: 220DR20ALHigh Current Controller Description:MMT-220DR serial motor speed controller adopts SCR chopper, which has unique trigger mode, thus making it more accurate and reliable. The drive is the update speed regulation product which develops and produces in combination with the international standard requirements and absorbs advanced technology experience. The drive has high performance-cost ratio because of its excellent performance and reliable quality. (It can high speed ratio even when at non-speed feedback) It is above average in motor drive field. Currently, the serial products have been exported to many countries and widely used in fields of domestic plastics machinery, food machinery, cable equipment, mechanical processing, papermaking, printing, experimental equipment, laboratory equipment, mixing equipment and so on.Brushed Controller Features:1. SMT technology, Small volume brushed motor speed controller2. Applicable to permanent-magnet motor, separate excitation motor and motor3. Dual closed loop PI adjustment (Current and Voltage)4. Current setting and current limiting protection5. The speed control mode and expansive force control mode are selectable.6. Large for low-speed start-up.7. Quick stop function8. Upper limit and Low limit can be set up to different need9. ACCEL and DECEL function10. Standard signal interface 0-5V or 10K potentiometer11. Can realize remote start and stop, Fine following performance; immediate dynamic response12. A wide speed-regulating range (0 - max).13. Strong mechanical features, static voltage error 1%14. A rapid dynamic response process.(adjustable)15. Automatic and smooth transition process during acceleration or deceleration.16. Good excavator features, can automatically overload current limit on the current settings.17. High reliability, compact structure and highly cost-effective.180V 220V High Power Controller Parameter:1. Input voltage range: AC 220V 2. Output Armature Voltage: 0-90V 0-110V 0-160V 0-180V 0-220V (you can adjust the output voltage by yourself.)3. Max output current: 20A4. Operating mode: Speed mode, Tension mode ( mode)5. Control ways: Potentiometer, 0-5V (if you need 0-10v control, please leave a message)6. Protection: Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function.7. Soft start /stop time: 0.2s - 20s8. Size: L*W*H = 154*135*85 mm8. Weight: 1250g Motor Speed Controller Picture:Soft Start Controller Connect Drawing:Enable control: INHIBITControl the motor Start and Stop180V motor speed control signal:1. The serial products adopt the full isolation mode and the external given signal can connect directly with the signal input terminal of drive.External potentiometers and analog signals for a given amount of signal for a given connection method2. Several potentiometer series / parallel usagMeans a potentiometer in parallel: This control mode enables two or more to adjust, use is simple and reliable. However, the total potentiometer resistance should be equal to 10K. (Potentiometer connection is best to use shielded line)3. Resistors in series connectionThis control method can achieve multi-stall speed control, used in a variety of occasions. However, the total resistance of resistors in series shown in the picture be equal to 10K.130V motor controller Internal potentiometer definition:Notice: Clock wise rotation to increase, anticlockwise rotation to decrease.1. MAX SPDAdjust the MAX SPD potentiometer to limit the motor maximum speed. that means you can adjust the controller output voltage via this potentiometer. clockwise the potentiometer to increase the output voltage.2. MIN SPDAdjust the MIN SPD potentiometer to limit the motor minimum speed.3. ACCEL Soft-start time adjustmentThis adjustment of potentiometers ACCEL can make sure motor's rising slope from the initial velocity up to the highest velocity (that is rising time, set time adjustable during 0-20 seconds).4. Soft-stop time adjustment (The interior has been fixed): DECELAdjustment of potentiometers DECEL can make sure motor's decline slope when speed dropped from the highest to the lowest (that is falling time, set time adjustable during 0-20 seconds). 5. Current limit adjustment: (when Under speed mode condition ) Adjustment of the potentiometer can restrict drive plate to a maximum output current.Based on your selection of the motor's rated current, we can use this potentiometer to adjust driver output current to match the motor rated current.Note: In the choice of driver, the driver's maximum output current should be 120% to 200% of motor rated current.6. compensation adjustments: IR COMPAdjust this potentiometer can keep a constant rotation speed when motor works in different load.Speed mode and Tension mode selection:1. Selection of speed mode:2. Selection of tension mode:Rapid braking (dynamic braking) of the connection:Note: When using this method when braking (dynamic braking) Please be sure to enable the port used in conjunction with, otherwise it will damage the bruhsed controller.This control method can obtain good braking effect. Braking resistor selection:RW (braking resistor power) = motor actual power X (0.6-0.8)R (braking resistor resistance) = Rated Voltage / (rated current X 1.2)Forward / Rreverse: Note: When using this method when braking (dynamic braking) Please be sure to enable the port used in conjunction with, otherwise it will damage the controller.high performance high current scr controller 180v 220v motor speed control 20ARelated productsModelInput voltageOutput voltageContinue currentMax currentController mode220DR15ALAC 220V0-90V, 0-110V, 0-160V,0-180V, 0-220VDC8A15APoti, 0-5V220DR20ALAC 220V0-90V, 0-110V, 0-160V,0-180V, 0-220VDC10A20APoti, 0-5V220DR35ALAC 220V0-90V, 0-110V, 0-160V,0-180V, 0-220VDC18A35APoti, 0-5V==========Model Number : 220DR20ALMotor Type : MotorInput voltage : 220VACOutput voltage : 0-130V, 0-180V, 0-220VMax current : 20AControl signal : Potentiometer, 0-5VSoft start : 0.2s- 20sSoft stop : 0.2s - 20sOperation mode : Speed mode, Tension modeMatched motor : brushed motor, pmdc motor, separated excited motor
