IR Power Meter Infrared Power Infrared Rejection Measuring Intensity from 1000nm to 1700nm Wavelength

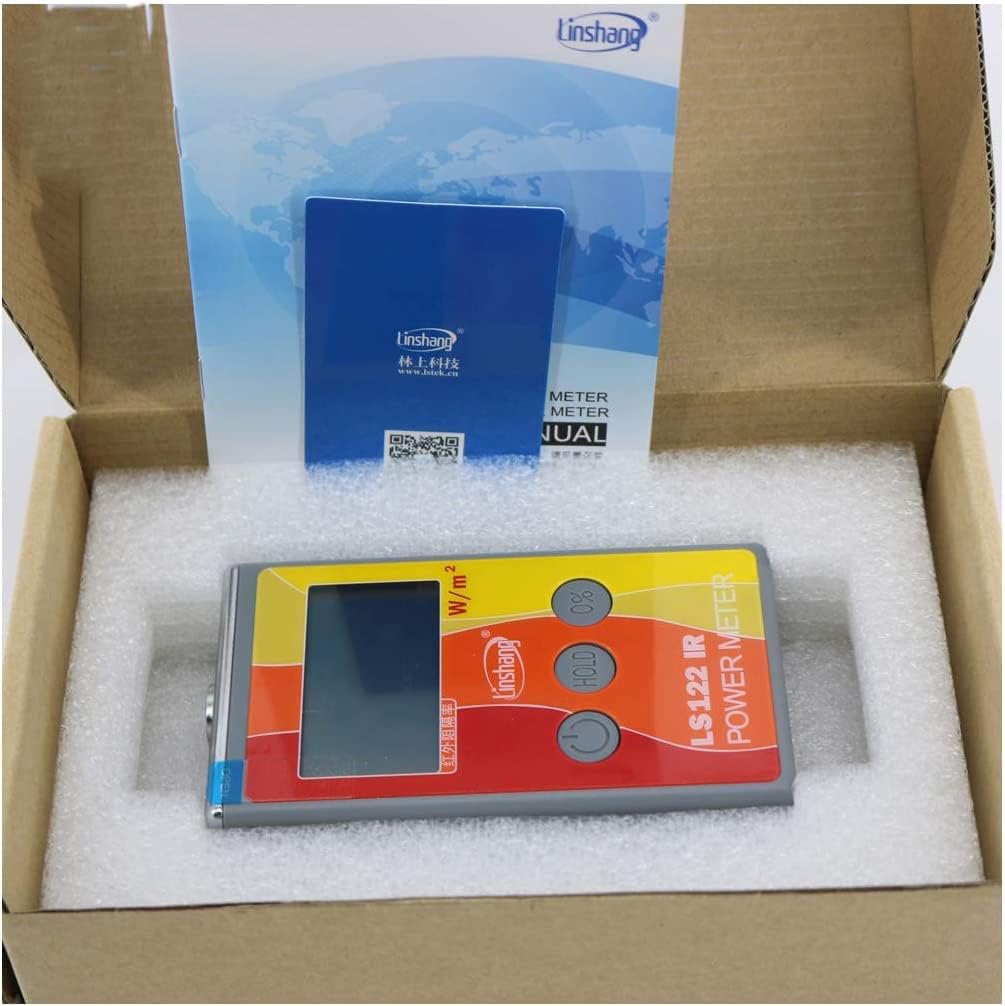

Introductions * infrared power meter is an infrared power measuring instrument, which is used for measuring the infrared radiation luminance. * Its unit is Watt per square meter (W/m2). The instrument is also used for the infrared rejection measurement. Technical Specifications * Irradiance measuring range: 0 -40000 W / m2 * Accuracy: ± 10% * Relative intensity: 0 - 9999% * Spectral range: λ (1000-1700 nm); λp = 1400 nm * Detector Diameter: 10mm * Dimensions: 125mmX69mmX24.5mm (LXWX H) * Weight: around 140 g * Operating temperature: -20 ° C --- +70 ° C * Power supply: 4 pieces of AAA alkaline batteries（Battery Not Included In the Package） Features * Can test both IR intensity and IR rejection rate * Its unit is Watt per square meter (uW/m2). * Wide spectral response, can test the intensity from 1000nm to 1700nm wavelength. * The instrument measures fast and automatically converts the infrared rejection of the material and displays it directly on the screen for easy reading.

• ◆ infrared power meter is an infrared powermeasuring instrument, which is used for measuring the infrared radiation luminance.
• ◆ Its unit is Watt per square meter (W/m2). The instrument is also used for the infrared rejection measurement.
• ◆ Irradiance measuring range: 0 -40000 W / m2; Spectral range: λ (1000-1700 nm); λp = 1400 nm
• ◆ The instrument measures fast and automatically converts the infrared rejection of the material and displays it directly on the screen for easy reading.
