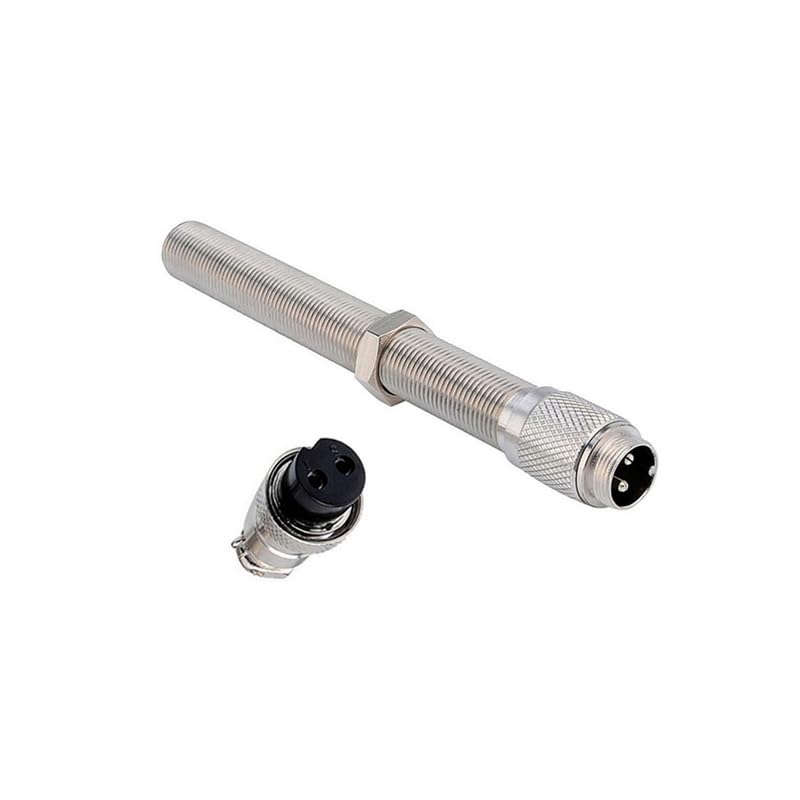

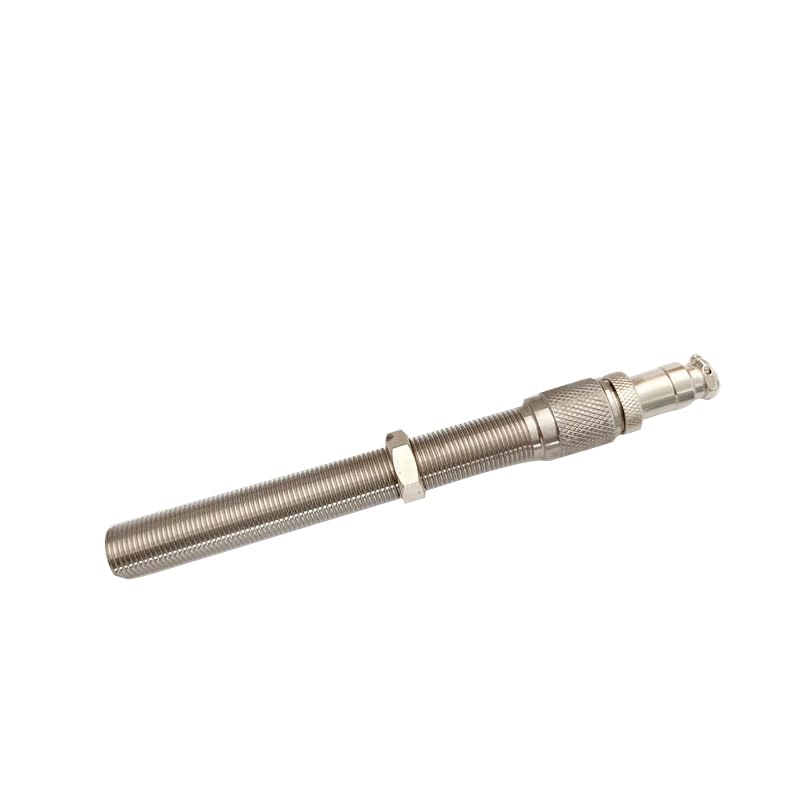

MPU MSP6710 Magnetic Pickup MPU Generator Speed Sensor RPM Genset Parts

MPU MSP6710 Magnetic Pickup MPU Generator Speed Sensor RPM Genset Parts Technical parameters： Range:50-5000HzInductance value:142MH+25%Resistance value:300Ω MAXThread:5/8-18UNF-2AOff-tooth distance:0.64-0.89mmTemperature range:-55℃ celsius to 105℃Idle output:1.5 volts AC MinMAX output:30 volts AC Package Include: 1 x MSP6710 Speed Sensor

• Broad Frequency Range: Detects speeds from 50 to 5000 Hz, ideal for precise RPM monitoring in engines, generators, and heavy-duty machinery.
• Durable Performance: Operates reliably in extreme temperatures (-55°C to 105°C) for consistent functionality in harsh environments.
• Optimal Signal Clarity: Delivers 1.5–30 V AC output; maintain 0.64–0.89mm off-tooth gap during installation for accurate speed signal transmission.
• Easy Setup: 5/8-18 UNF-2A threaded design with clear installation guidelines—adjust sensor to gear contact, then back out 3/4 turn for optimal alignment.
• Universal Compatibility: 142mH±25% inductance and 300Ω MAX resistance ensure seamless integration with most control systems and ferrous gears.
