TECHTONGDA Auto Strut Hydraulic Compressor Removing Tool Suspension Spring Remover Air Operate Strut Coil Spring Press Compressors Auto Tools Equipment for SUV, Van, Pickup Truck 5511lbs

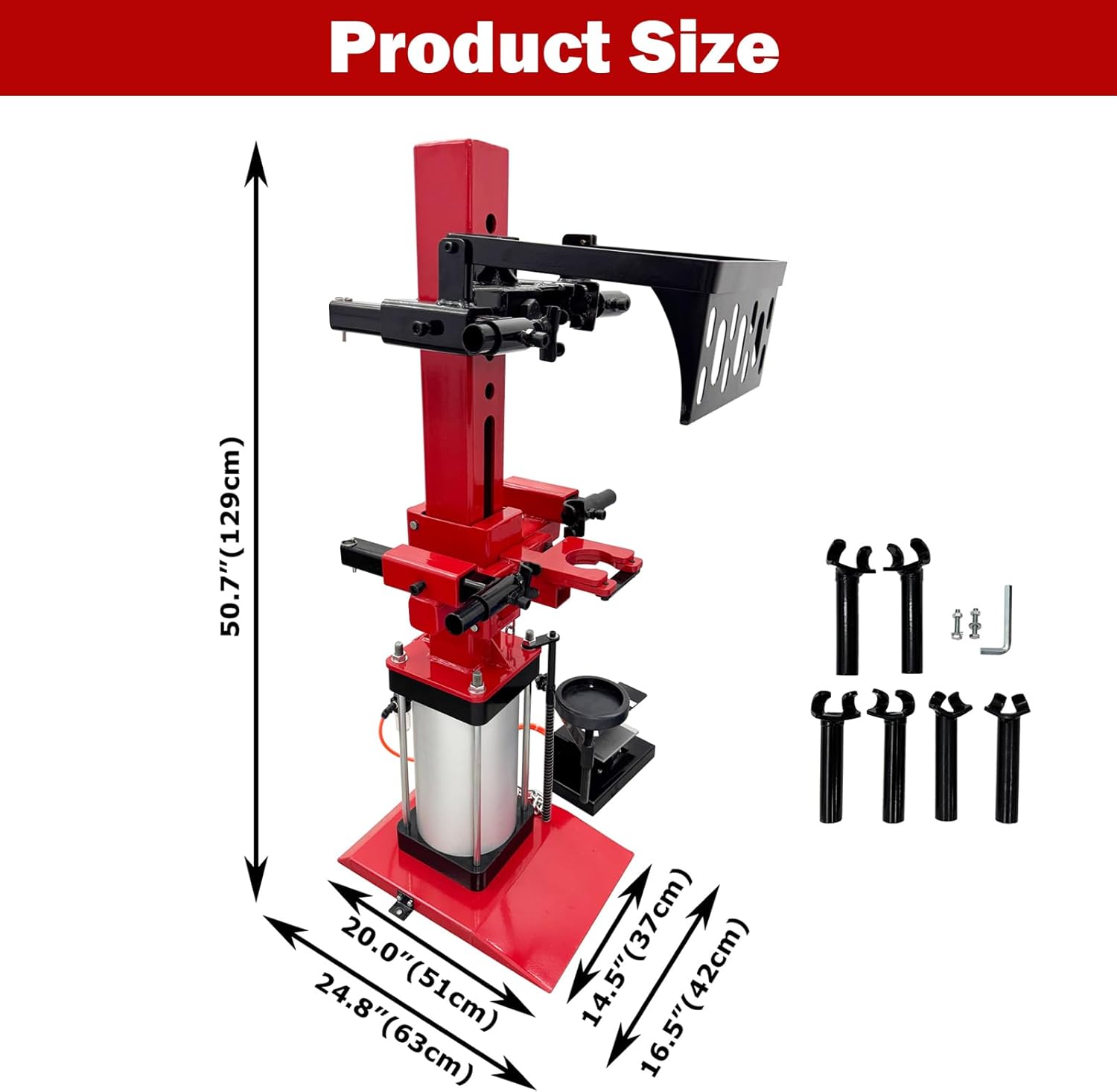

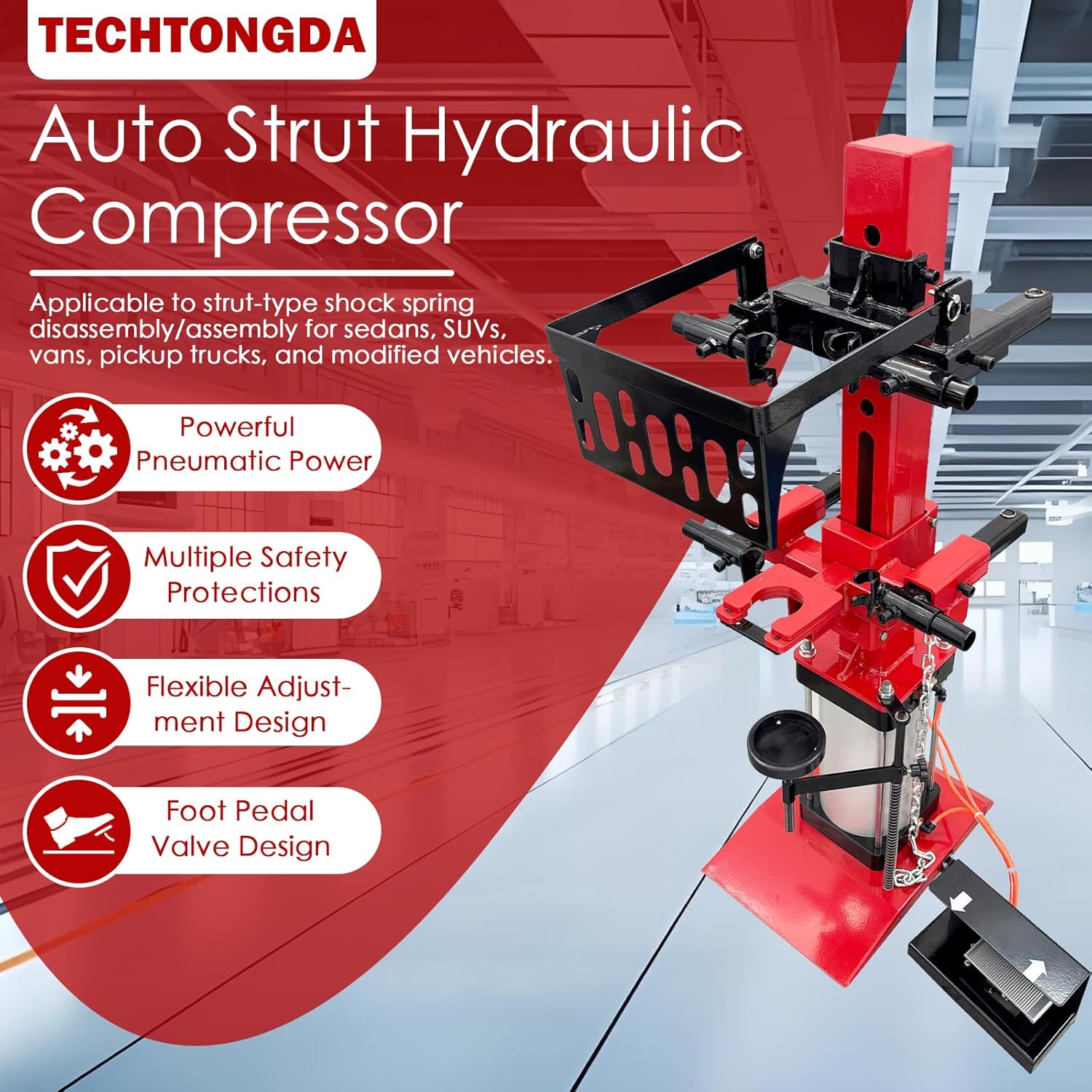

Overview: Applicable to strut-type shock spring disassembly/assembly for sedans, SUVs, vans, pickup trucks, and modified vehicles. It features strong versatility, simple operation, and safe reliability. The column uses 100×100mm seamless steel tubing with 8mm wall thickness, equipped with a Φ200×250mm cylinder and other pneumatic components, using compressed gas as power. Only one operator is needed to easily and quickly disassemble/reassemble shock absorbers. This product offers two operation modes, allowing users to select the appropriate method based on the shock absorber's shape and size. Multiple safety protections enable more controlled disassembly/assembly. Parameters: Cylinder compression force:≤5511lbs (2500Kg) Spring wire diameter:≤0.7"(18mm) Maximum cylinder stroke:≤9.8"(250mm) Shock absorber strut diameter:1.7"-2.2"(45-56mm) Package size:23.6"*20.5"*57.8" (60cm*52cm*147cm) Net weight / Gross weight:169.7lbs(77kg) / 229.2lbs(104kg) Before You Buy: Please use with your own air pump or air compressor (not included) Item Included: Auto Strut Hydraulic Compressor Removing Tool *1 Accessory Kit *1

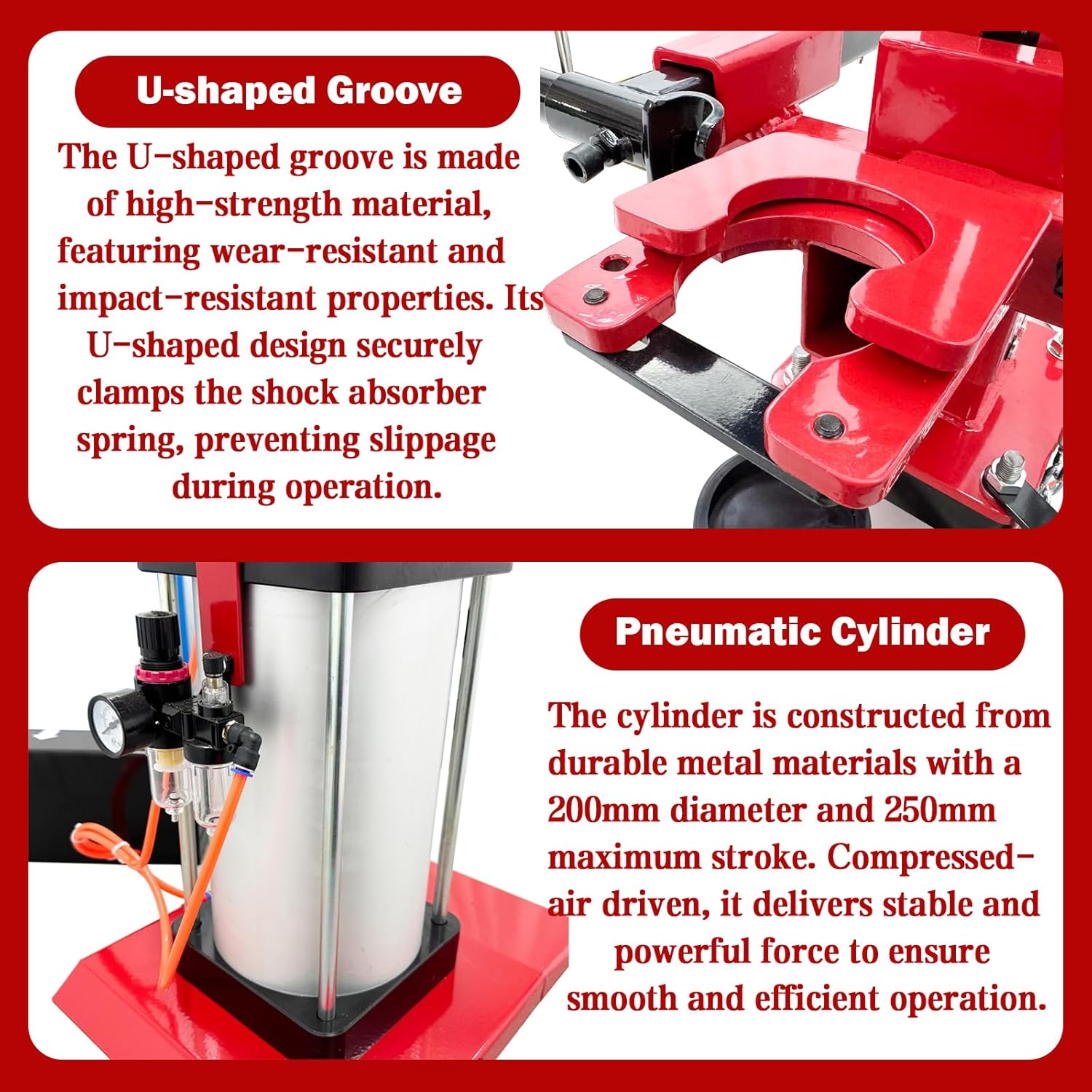

• 【Powerful Pneumatic Power】: It adopts a high-strength cylinder with a diameter of 200mm and a maximum stroke of 9.8"(250mm), with a compression force of up to 5511lbs (2500Kg). Powered by compressed gas, a single person can quickly complete the disassembly and assembly of shock-absorbing springs for sedans, SUVs, trucks and other models, and the operation is simple and efficient
• 【Multiple Safety Protections】: Equipped with a fully enclosed metal frame safety cage and anti-ejection safety chain, it offers 360° surround protection, effectively preventing accidental spring ejection or displacement. The four-jaw clamping mechanism evenly fixes the spring, combined with a stable locking mechanism, ensuring a safe and reliable disassembly process
• 【Flexible Adjustment Design】: The upper swing arm claw supports multi-level height and lateral micro-adjustment, adapting to different spring pitches. The base frame height is adjustable, with a U-shaped groove that can hold shock absorber pillars with diameters ranging from 1.7" to 2.2"(45-56mm). A single person can complete the entire operation process, meeting diverse operation requirements
• 【Portable Control】: This machine adopts a portable foot valve design. Through single-step operation, precise tool control and hands-free function are achieved, providing flexible machine management and significantly improving work efficiency
• 【High Stability】: The device can be fixed to the floor by two pre-drilled holes, and the stable base provides a reliable foundation for smooth compression or transported around the workspace for optimal mobility
