TOP1 UPS HAT for Raspberry Pi 5V Uninterruptible Power Supply Multi Battery Protection Circuits Supports 18650 Lithium Battery
Product details
| Management number | 217057033 | Release Date | 2026/04/19 | List Price | $10.36 | Model Number | 217057033 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

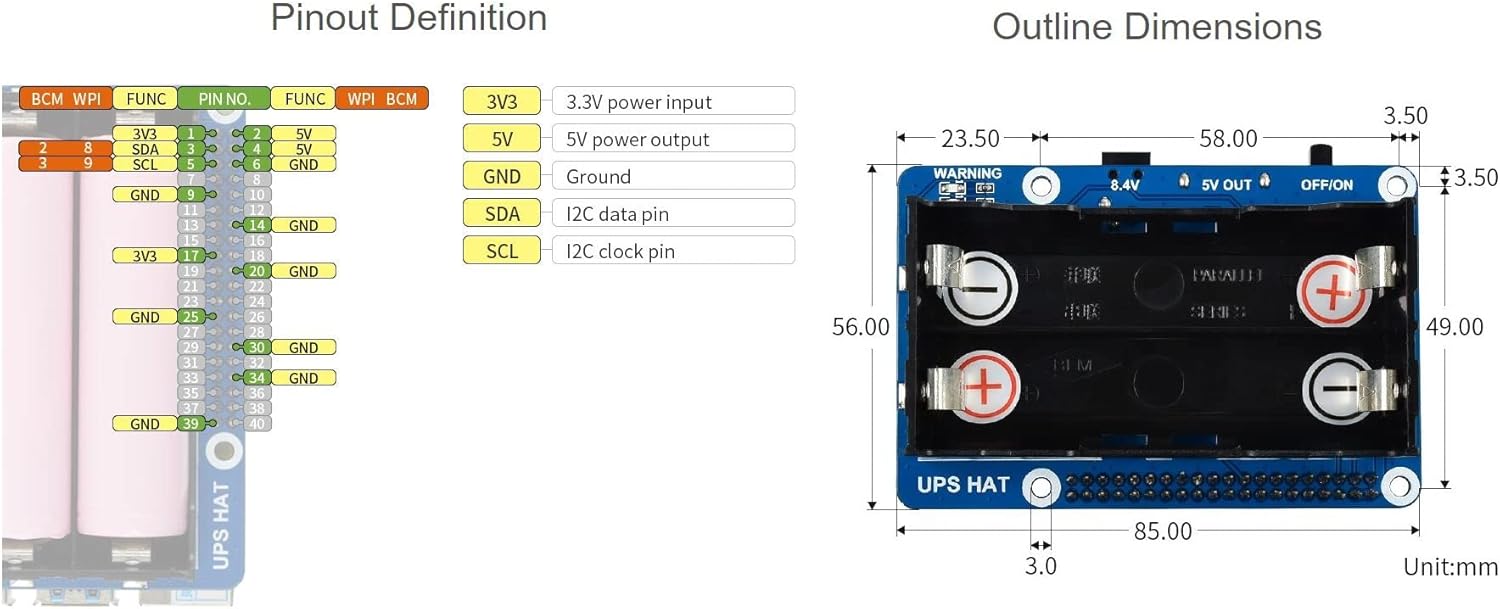

UPS HAT For Raspberry Pi, 5V Uninterruptible Power Supply, Multi Battery Protection Circuits Features Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable Onboard 5V regulator, up to 2.5A continuous output current 5V USB output, convenient for powering other boards Batteries warning indicators, easy to check if the battery is connected correctly Specifications OUTPUT VOLTAGE: 5V CHARGER: 8.4V 2A CONTROL BUS: I2C DIMENSIONS: 56 × 85mm BATTERY SUPPORT: 18650 Li battery (NOT included) MOUNTING HOLE SIZE: 3.0mm Development Resources Please contact us or visit the official website of Waveshare PACKAGE CONTENT The 18650 batteries are NOT included Please note that the battery length SHOULD be less than 67mm, some batteries with protection plate in the market are NOT supported UPS HAT x1 8.4V battery charger x1 2×20PIN female header x1 RPi screws pack (2pcs) x1
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- I2C bus communication, monitoring the batteries voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
- Onboard 5V regulator, up to 2.5A continuous output current, 5V USB output, convenient for powering other boards
- Batteries warning indicators, easy to check if the battery is connected correctly
| UPC | 797434728982 |
|---|---|
| Brand | waveshare |
| Color | UPS HAT (EN) |
| Voltage | 5 Volts |
| Wattage | 12.5 watts |
| Amperage | 2.5 Amps |
| Form Factor | Compact |
| Item Weight | 0.16 Kilograms |
| Manufacturer | TOP1 |
| Model Number | UPS HAT (EN) |
| Input Voltage | 8.4 Volts |
| Maximum Power | 12.5 Watts |
| Connector Type | Micro USB |
| Output Voltage | 5 Volts |
| Output Wattage | 12.5 Watts |
| Mfr Part Number | UPS HAT (EN) |
| Power Plug Type | Type B - 3 pin (North American & Japanese) |
| Battery Cell Type | Lithium |
| Number of Outlets | 1 |
| Enclosure Material | Plastic |
