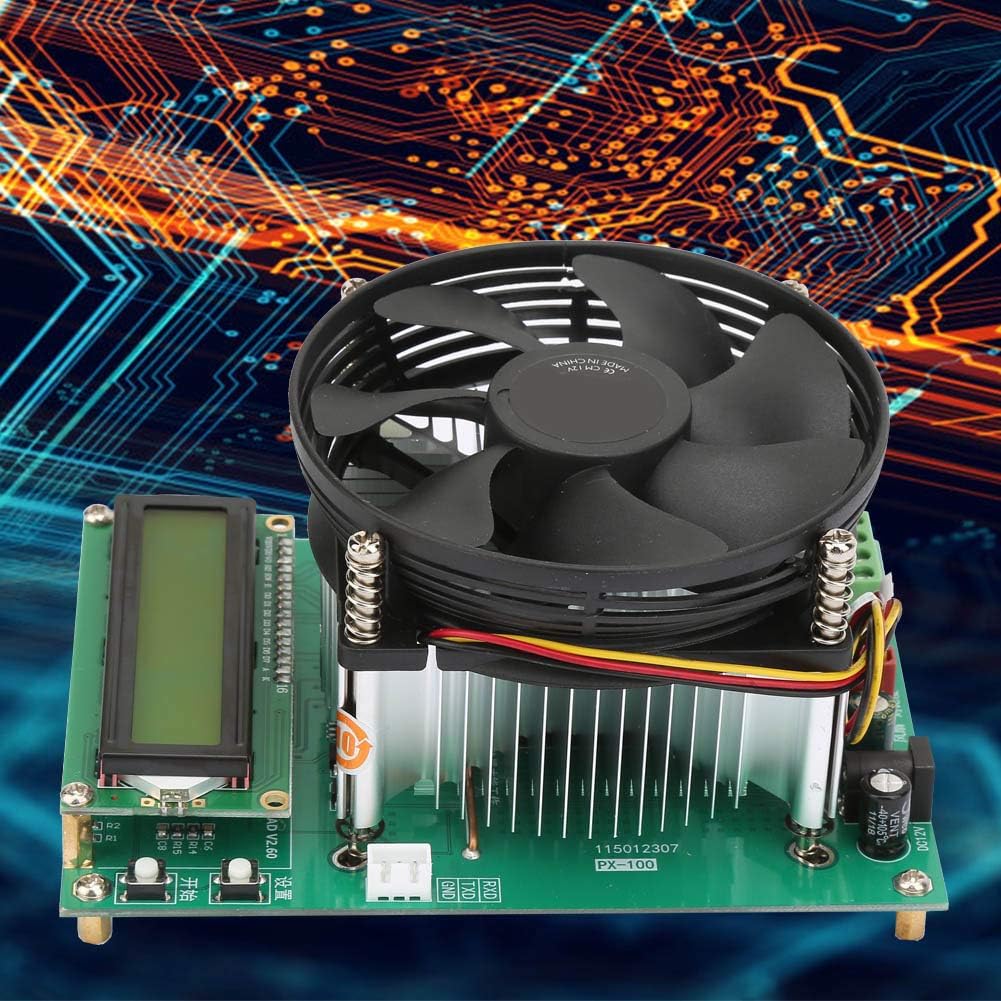

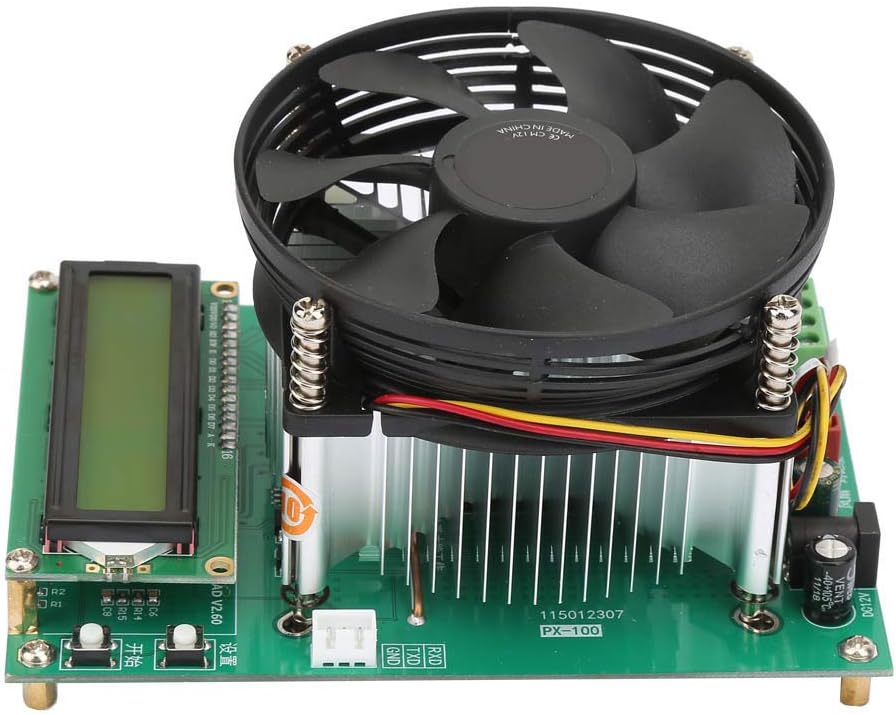

Vikye Electronic Load Battery Tester, 150W LCD Display Constant Current Capacity Testing Module Electronic Test Tool, Discharge Tester

Specifications: Voltage: DC 12V±5% Load Type: Constant current Load Voltage: 0.5-60V Load Current: 0-10A Max Power: 150W Voltage Reading Precision: ±(0.1%+0.05%FS) Current Reading Precision: ±(0.2%+0.1%FS) Constant Current Accuracy: Current reading precision + 1d Noise: 25dD(A) Weight: 341g(approx.) Note: 1, Power supply and load testing power supply must be independent from each other; otherwise it may to uncontrollable load or other unpredictable situation. 2, If the load is already started and then connect with test power, you need to assess whether power is secure. For example, if set 10A and start load, then connect to 60V power source, the instantaneous power can reach 600W, which can probably damage power tube. Although the load current can be adjusted automatically, it needs reaction time (about 0.02 second). So when you are not sure if it is secure, you can connect it to test power supply first, and the machine will automatically calculate the largest secure current. For example, when the maximum voltage is 60V, the secure current is 2.5 A. If you set the current above 2.5A, it will work at 2.5A. 3, Connecting wrongly positive and negative positive and negative electrodes of test power supply will cause short circuit, and if the current is too large, power tube may be damaged. Avoid wrong wiring, please. 4, Users need to have some knowledge of circuit, please make sure you know how to use it. 5, It is suggested to power on this item before connecting with test power supply or test batteries. Package Includes: 1 x Electronic Load

• 1602 LCD screen, display information comprehensively
• Configuration of 9cm CPU fan, very quiet
• With temperature display, supporting the discharge and voltage setting
• Test all kinds of power load or burin-in, can also test capacity of battery discharge
• Load maximum power 150W, max voltage 60V, max current 10A
