waveshare ESP32-S3 1.85inch Round Touch Display Development Board 360×360 Resolution 262K Color LCD Screen, 32-bit LX7 Dual-core Processor,Supports WiFi & Bluetooth
Product details
| Management number | 212361779 | Release Date | 2026/04/06 | List Price | $16.89 | Model Number | 212361779 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ESP32-S3 1.85inch Round Touch Display Development Board, 360×360, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, Accelerometer And Gyroscope Sensor, ESP32 With Display, Optional For Touch Function Features ESP32-S3-Touch-LCD-1.85 is a microcontroller development board with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.85inch LCD display which can smoothly run GUI programs such as LVGL, optional for capacitive touch function. Combined with various peripheral interfaces, suitable for the quick development of the HMI and other ESP32-S3 applications. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 1.85inch LCD display, 360×360 resolution, 262K color Optional for capacitive touch function controled via I2C interface, with interrupt support Adapting UART, I2C and some IO interfaces Onboard audio decoder, Microphone, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios Package Content ESP32-S3-LCD-1.85 x1 2030 8Ω 2W speaker ×1 SH1.0 4PIN cable ~100mm ×2 Note Technical Support is provided, please contact with us first if you have any problem .

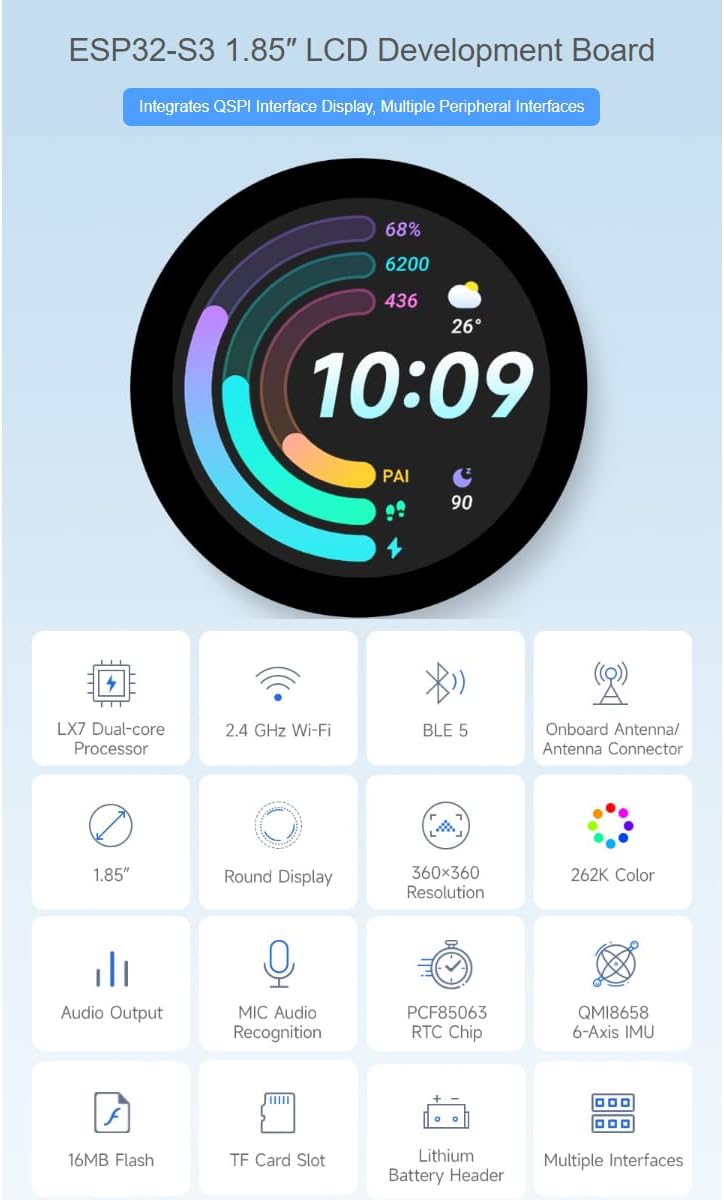

- ♥ESP32-S3 1.85″ Touch LCD Development Board,Integrates QSPI Interface Display, Multiple Peripheral Interfaces
- ♥IPS Display Panel,262K Color, 360×360 Resolution, Wide Viewing Angle
- ♥Supports Multiple Peripherals,Supports The Expansion Of Multiple Peripherals Via GPIO And I2C Interfaces, Etc.

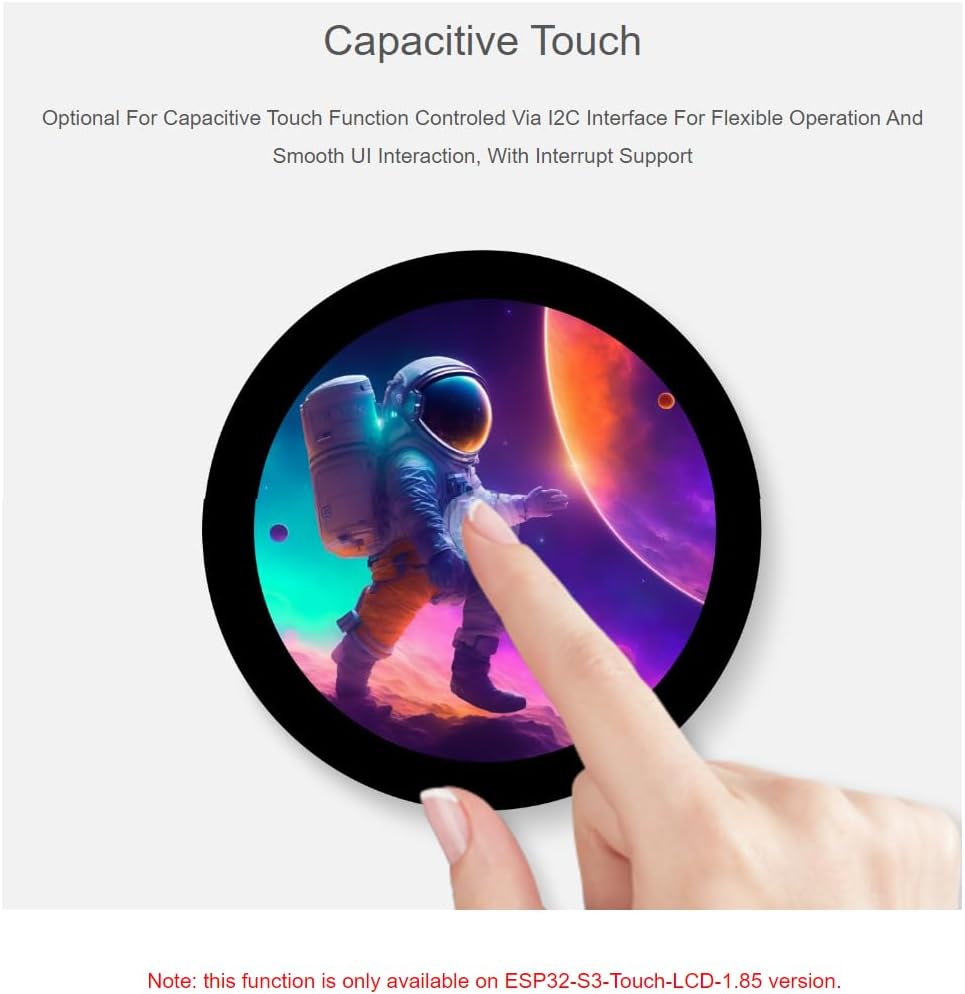

- ♥Capacitive Touch,Optional For Capacitive Touch Function Controled Via I2C Interface For Flexible Operation And Smooth UI Interaction, With Interrupt Support
- ♥Display control chip:ST77916
| UPC | 788046389180 |
|---|---|
| Brand | waveshare |
| Model Name | ESP32-S3 1.85inch Round Touch Display Development Board |
| Item Weight | 0.03 Kilograms |
| Manufacturer | Waveshare |
| Model Number | ESP32-S3 1.85inch Touch LCD |
| Mfr Part Number | ESP32-S3 1.85inch Touch LCD |
| Processor Brand | Espressif |
| Processor Count | 2 |
| Processor Speed | 240 MHz |
| Total Usb Ports | 1 |
| Operating System | Linux |
| Compatible Devices | Cameras, computers (PCs, laptops, tablets), game consoles, smartphones, microcontrollers (Arduino, Raspberry Pi models), printers, keyboards, speakers |
| RAM Memory Installed | 512 KB |
| Wireless Compability | 802.11n |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Wi-Fi 802.11 b/g/n, Bluetooth 5 |
| Memory Storage Capacity | 24 MB |
