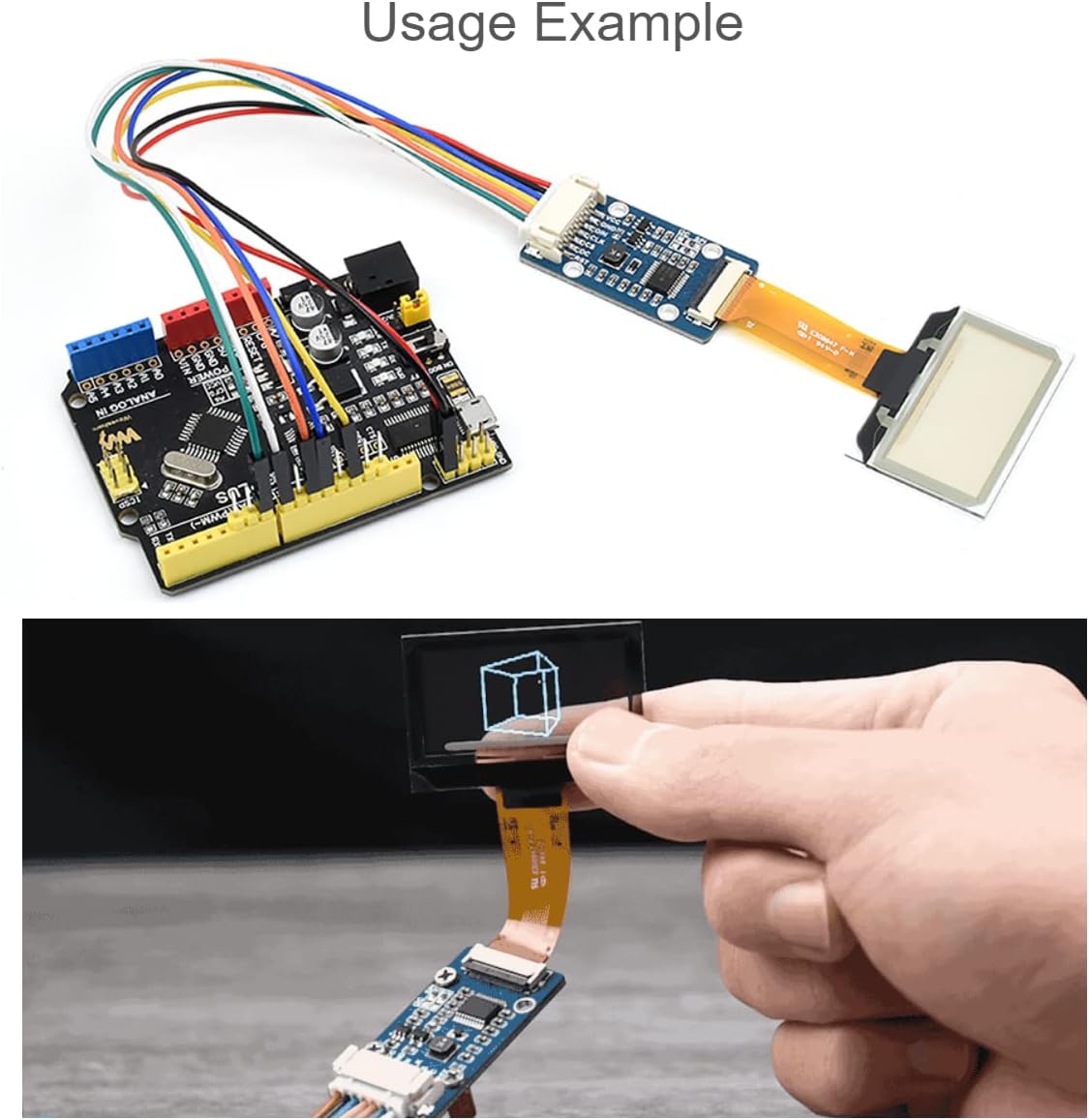

waveshare for Raspberry Pi/Arduino/STM32, 1.51" Transparent OLED Screen with Expansion Board, 128x64 Pixels Light Blue Color Display,3.3V / 5V Voltage Embedded Chip, SPI/I2C Interfaces
Product details
| Management number | 216993512 | Release Date | 2026/04/19 | List Price | $11.13 | Model Number | 216993512 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
OLED & Controller The integrated built-in controller used by this OLED is SSD1309, which has 128 x 64 bits SRAM, supports up to 128 x 64 pixel screen, supports SPI/I2C/ 6800 parallel port/8080 parallel port, 256-level brightness settings, this screen is 128 × 64 pixels, so the internal SRAM is not fully used. This module adopts four-wire SPI and I2C interfaces, with good compatibility and high transmission speed. Online guide/document: n9.cl/zcqtf Specifications Working Voltage: 5V/3.3V. Communication Interface: SPI/I2C. Controller: SSD1309. Resolution: 128 x 64. Display Size: 35.05 x 15.32 (mm). Pixel Size: 0.254 x 0.254 (mm). Board Size: 41 x 22.5 (mm). Display Color: Light Blue. Package Content 1.51inch Transparent OLED x1 PH2.0 7PIN cable x1 Screws pack FAQ 1.Question:How many volts can an OLED module be used in a system? Answer: The OLED module is used in a 3.3V system by default, but after more than 24 hours of the burn-in test, it is found that it can also work normally in a 5V system. 2.Question:How many hours is the service life of an OLED module? Answer:Generally it is 50,000 hours under normal working conditions. 3.Question:What should I pay attention to when using this OLED module? Answer: 1. Be careful not to connect the power supply in reverse. 2. The same picture cannot be displayed for a long time, or there will be afterimages and cause damage to the OLED. 4.Question:Why does the OLED module not turn on when it is connected to the power supply? Answer: OLED does not have a backlight, and the display is self-illuminating. Only connect VCC and GND, and the OLED will not light up. Program control is required to brighten the OLED.
- 1.51" Transparent OLED Screen with Expansion Board,full viewing angle.
- Embedded independent driver chip, Using SPI/I2C Interfaces
- SPI and I2C control interface switching, supports controller boards like Raspberry Pi/Arduino/STM32
- Working Voltage: 5V/3.3V. Communication Interface: SPI/I2C. Controller: SSD1309. Resolution: 128 x 64. Display Size: 35.05 x 15.32 (mm). Pixel Size: 0.254 x 0.254 (mm). Board Size: 41 x 22.5 (mm). Display Color: Light Blue.
- There are two driver interfaces on the OLED module: 4-wire SPI and I2C interfaces respectively. Two resistors can be soldered on the back of the module. The corresponding communication mode can be selected through the selection of resistors
| UPC | 790885890543 |
|---|---|
| Brand | waveshare |
| Color | 1.51" OLED |
| Shape | rectangular prism |
| Model Name | 1.51 inch Transparent OLED Module |
| Resolution | 128 x 64 |
| Item Weight | 0.02 Kilograms |
| Pixel Pitch | 0.357 |
| Screen Size | 1.51 Inches |
| Aspect Ratio | 2:1 |
| Display Type | OLED |
| Manufacturer | Waveshare |
| Model Number | 1.51 inch Transparent OLED Module |
| Mounting Type | Wall Mount |
| Screen Finish | Glossy |
| Viewing Angle | 178 Degrees |
| Contrast Ratio | high |
| Native Resolution | 128 x 64 |
| Compatible Devices | Raspberry Pi, Arduino, STM32 |
| Display Technology | OLED |
| Additional Features | Transparent |
| Connectivity Technology | I2C |
| Item Dimensions D x W x H | 0.89"D x 1.38"W x 0.89"H |
| Specific Uses For Product | electronics projects, prototyping, DIY applications, educational purposes, embedded systems development |
| Display Resolution Maximum | 128 x 64 |
